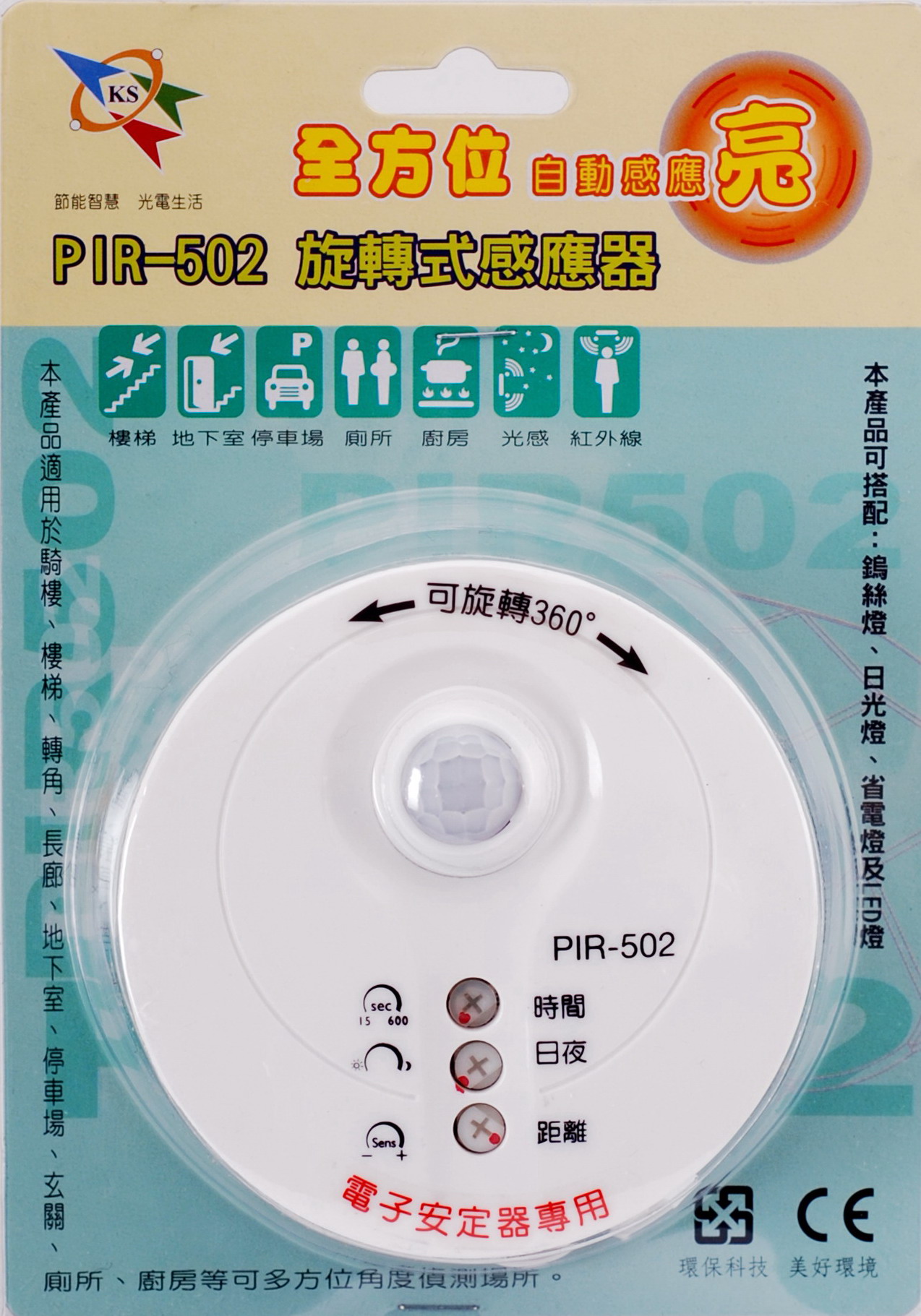

PIR-502 Rotative Sensor
Home / Products / PIR Sensors / PIR-502 Rotative Sensor
Model No : PIR-502
Functions & Characteristics:
- The lamps always light up when people come close to its sensing range. The lamps will shut off within the off delay time when people leave beyond the sensing distance. It’s energy-saving, convenient and safe.
- Special circuit design can resist spark, surge and noise.
- Time, day & night and sensitivity can be adjusted and it can be installed on the wall and the ceiling.
- Combine with any lamp, such as Incandescent lamp, Fluorescent lamp, energy saving lamp and LED lamp.
- PIR Motion Sensor application: Hallway, door gate, corridor, stairs, garage, balcony and basement...etc.
Specification:
360° Motion Detector, 360 Degree Motion Sensor
| Model No. | PIR-502 Rotative Sensor |
|---|---|
| Power Supply | AC100V ~ 240V, 50HZ/60HZ |
| Max. Load |
Incandescent lamp : 600W |
| Power Consumption | standby: 220V-35mA/110V-17mA |
| Sensing Angle | R&L:<130°, UP&DOWN:<90°(at 25°C). Rotative sensor within 360° |
| Adjusting Angle | Up&Down, R&L: 50° |
| Sensing Distance | 8m (at 25°C ) |
| Off Delay time | 15~600 sec. |
| Warm-up Procedure | Install in the daytime: the lamp will flash 3 times after energizing. Install in the nighttime: the lamp will light for about 30 seconds then automatically shut off after the charge. |
| Dimension | 10×10×4.5cm |
| Weight | 117g |

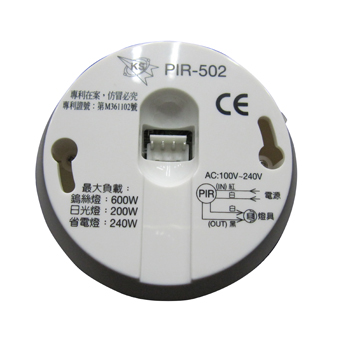

| Wiring | 2in / 2out |

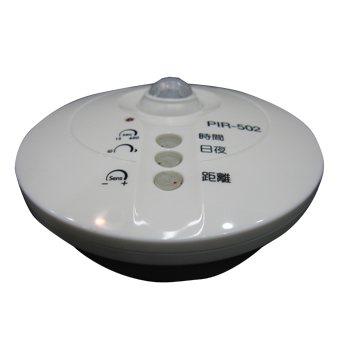

Instructions( Three adjustable knobs provided as described below):
Adjust for day & night.
Sun: The 360° motion detector operates whenever people arrive.
Moon: It only operates at dark surroundings.
Adjust for the off delay time.
15: about 15 seconds.
600: about 600 seconds and than light shut off.
Adjust for sensitivity.
Turn left: short sensing distance.
Turn right: long sensing distance.
Sensing Range and Distance:

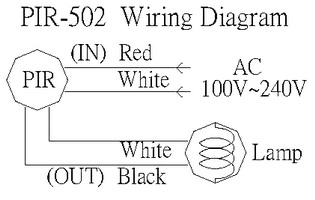

Wiring Diagram:
Application place:
